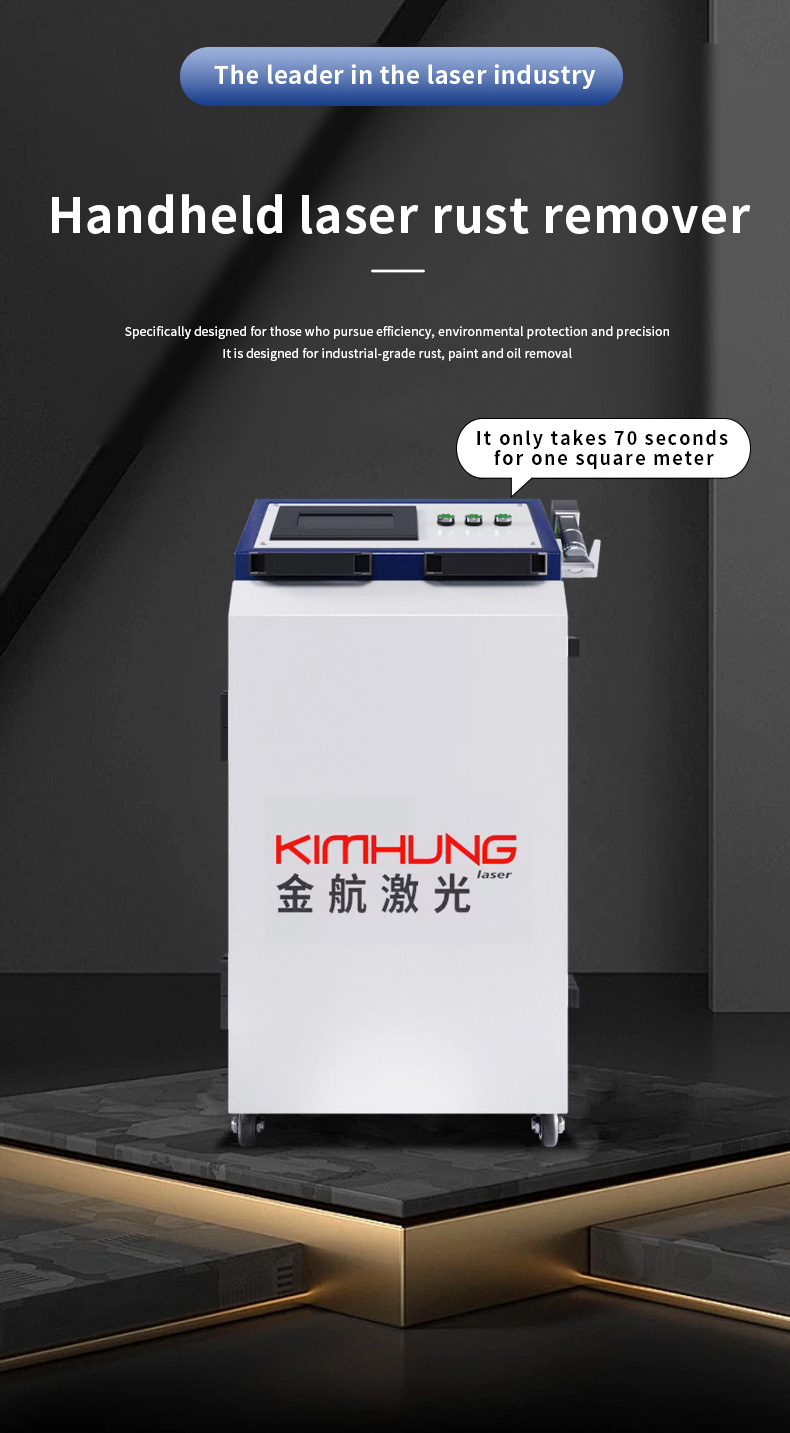

Laser cleaning machine
Suitable for industries such as aerospace, fitness equipment, automotive parts, mold cleaning, electronic circuits, etc
Product Features
- Environmental advantages: Laser cleaning is a "green" cleaning method that does not require the use of any chemicals or cleaning Buids
-
Effect advantage: It can clean various types of pollutants on the surface of various materials without damaging the base material
-
Control advantage: Laser can be transmitted through optical fibers, enabling remote operation and ensuring personnel safety
Technical Parameters
|
Model |
FWH20-C11A |
FWH20-C11A | FWH20-C11A | FWH20-C11A | |
|
laser power |
1000W |
1500W | 2000W | 3000W | |
|
wavelength coverace |
1070±20nm |
1070±20nm | 1070±20nm | 1070±20nm | |
|
Collar focal length |
50mm |
50mm | 50mm | 50mm | |
|
Focus focal length |
F600 |
F600 | F600 | F600 | |
|
run-length |
0~200mm |
0~200mm | 0~200mm | 0~200mm | |
|
sweep speed |
20000mm/s |
20000mm/s | 20000mm/s | 20000mm/s | |
|
Auxiliary air pressure |
≥0.5~0.8Mpa |
≥0.5~0.8Mpa | ≥0.5~0.8Mpa | ≥0.5~0.8Mpa | |
|
Effective optical aperture |
ø25 |
ø25 | ø25 | ø25 | |
|
Packaging weight |
165公斤 |
165公斤 | 168公斤 |
1824F |
|
|
Equipment size |
1100*750*1020 |
1100*750*1020 | 1100*750*1020 | 1100*750*1020 | |
|
Electricity demand |
220V 50HZ |
220V 50HZ |
220V 50HZ |
380V 50HZ |
|
|

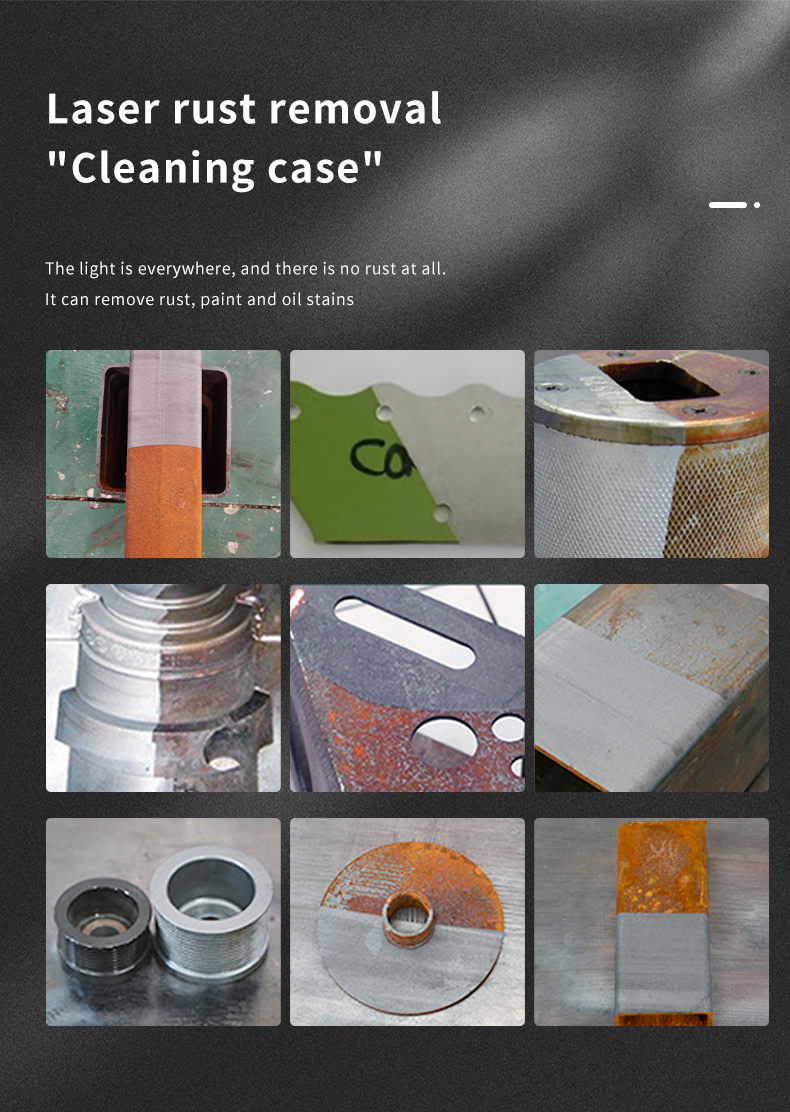

Clean the floating rust (within 0.2 mm |
10 m² /h |
20 m² /h | 40 m² /h | 80 m² /h | |
|
Wash Paint (within 0.12 mm) |
5 m² /h | 10 m² /h | 20 m² /h | 40 m² /h | |
|
power rating |
< 1000W |
< 1500W |
< 2000W |
< 3000W |
|
|
Fiber interface |
OBH |
OBH |
OBH |
OBH |
|
